Product Report | YONGLUX 2052 Series LED Bollard Light

1. Overview

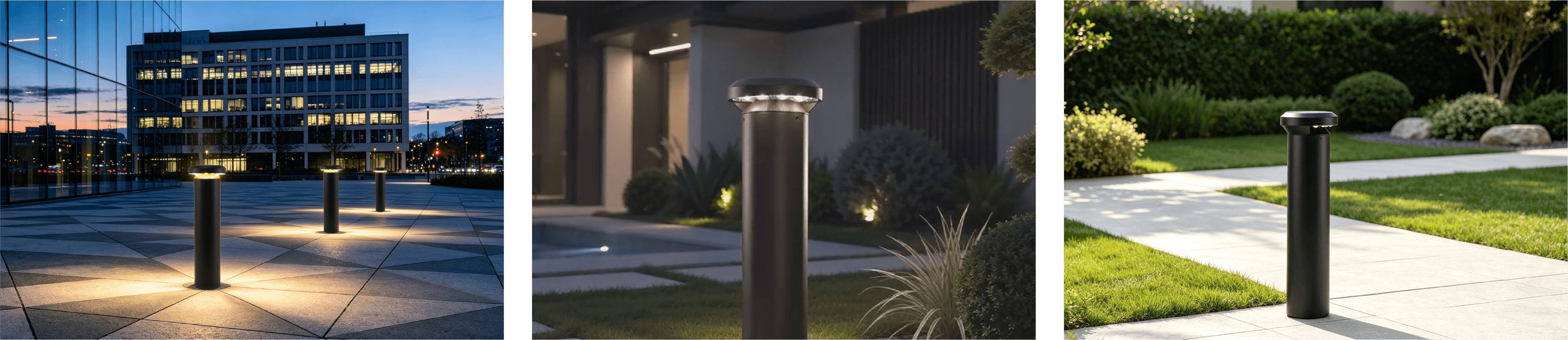

Against the continuous upgrading of urban landscapes, park walkways and courtyard greening, outdoor bollard lights integrating functionality, durability and aesthetics have become essential for night‑time outdoor environments. YONGLUX launches the brand‑new 2052 Series LED Bollard Light, featuring two variants: Model 2052 (360° full‑wide light distribution) and Model 2052H (180° side‑wide light distribution). It delivers both safe pathway lighting and immersive landscape atmosphere. Suitable for gardens, walkways, entrances and driveways, it provides reliable standardized lighting solutions for commercial real‑estate, municipal parks and villa courtyard projects.

Certified with CE and RoHS, this series features IP66 ingress protection and IK10 impact resistance for harsh outdoor conditions. On‑site DIP‑switch selection for wattage and CCT plus multi‑dimming compatibility greatly reduce inventory and commissioning costs. A 5‑year full‑unit warranty guarantees long‑term stable operation for projects.

2. Core Design & Hardware Specifications

2.1 Housing & Material

Constructed of die‑cast aluminum housing and extruded aluminum pole, with high‑transmittance PC optical lens for UV‑resistance, anti‑aging performance and excellent resistance to rain, snow and salt spray. Two finish options: Black RAL9005, Bronze RAL8019, matching modern minimalist and luxury garden styles.

Available heights: 400mm, 600mm, 800mm. Pole outer diameter Ø127.5 mm, top cap outer diameter Ø179 mm. Its sleek column‑shaped design blends harmoniously into green landscapes. Complete set of anchor bolts is included, no extra accessories required.

2.2 Light Source & Electrical Parameters

Light source adopts Ledestar dual‑color SMD 5050 LED chips:

• Model 2052 (360° full‑wide distribution): 12 pcs LED, selectable power:10W/18W/25W; beam angle 176°

• Model 2052H (180° side‑wide distribution): 6 pcs LED, selectable power:12W/16W/20W; beam angle 158°

Electrical: 100‑277Vac wide‑voltage input, 50/60Hz, power factor＞0.9; CRI Ra≥70 to restore true colours of plants and surroundings.

3‑level CCT selectable: 3000K(Warm) /4000K(Neutral) /5000K(Cool white). Built‑in DIP switches allow on‑site adjustment of wattage and CCT without part replacement, lowering SKU inventory pressure.

Supports 3‑in‑1 dimming: 0‑10V / PWM / resistance dimming, compatible with building smart lighting systems for intelligent brightness control.

Excellent luminous efficiency: Model 2052 max. 116lm/W, lumen output 915‑2485lm under different power & CCT settings; Model 2052H max.95lm/W, lumen output 1140‑1725lm. It delivers long‑range, even ground illumination with minimal shadow.

2.3 Environmental Performance & Lifespan

• Operating ambient temperature: ‑40℃ ~ +50℃, stable performance in extreme cold and hot outdoor environments

• IP66 dust‑tight & water‑jet proof, IK10 mechanical impact resistance against collision, rain and dust

• Rated LED lifespan: 40000 hours, reducing maintenance and replacement frequency

• Warranty: 5 years, lowering total‑life‑cycle cost for engineering projects

3. Two Optical Solutions for Diverse Project Requirements

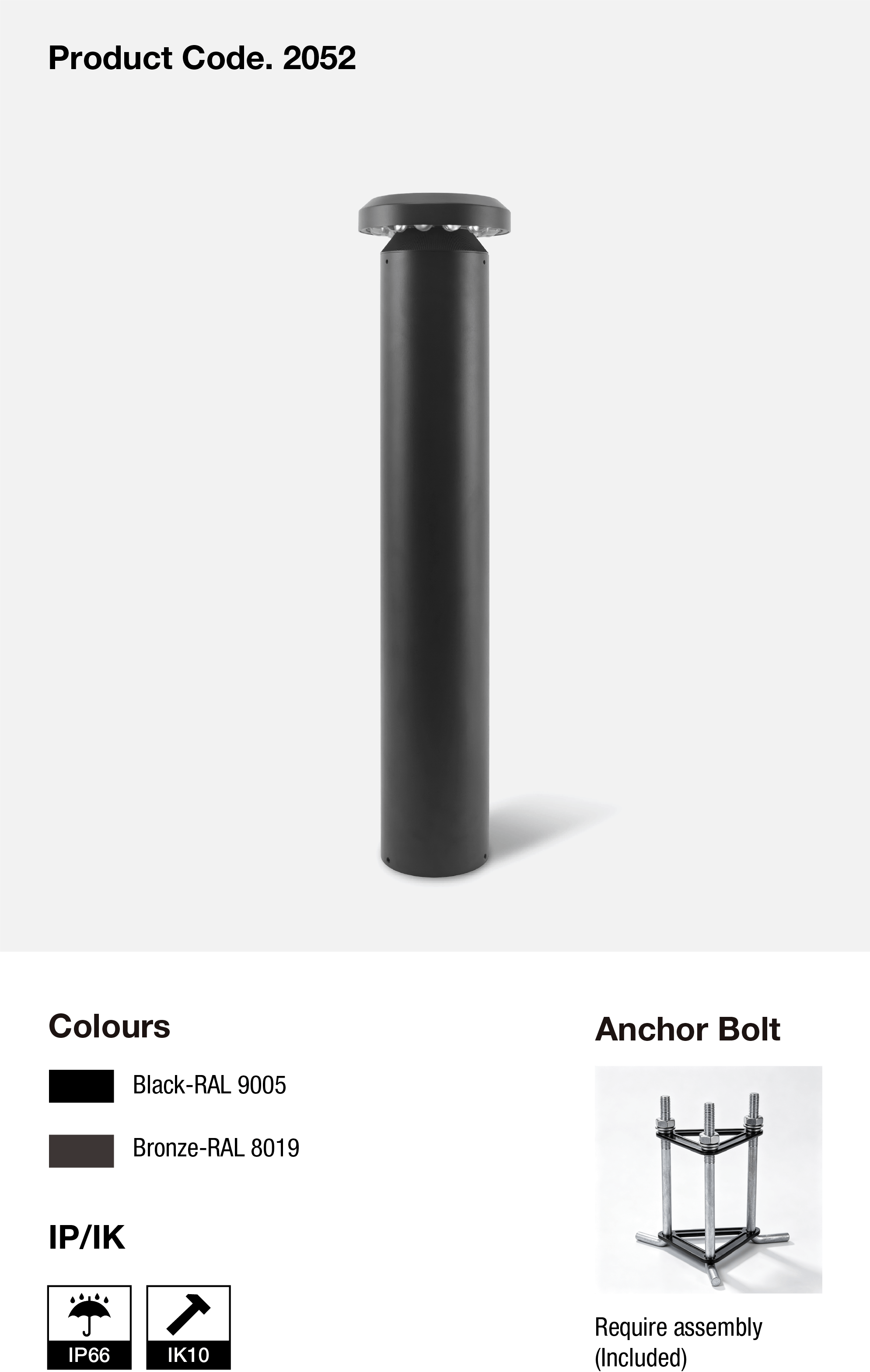

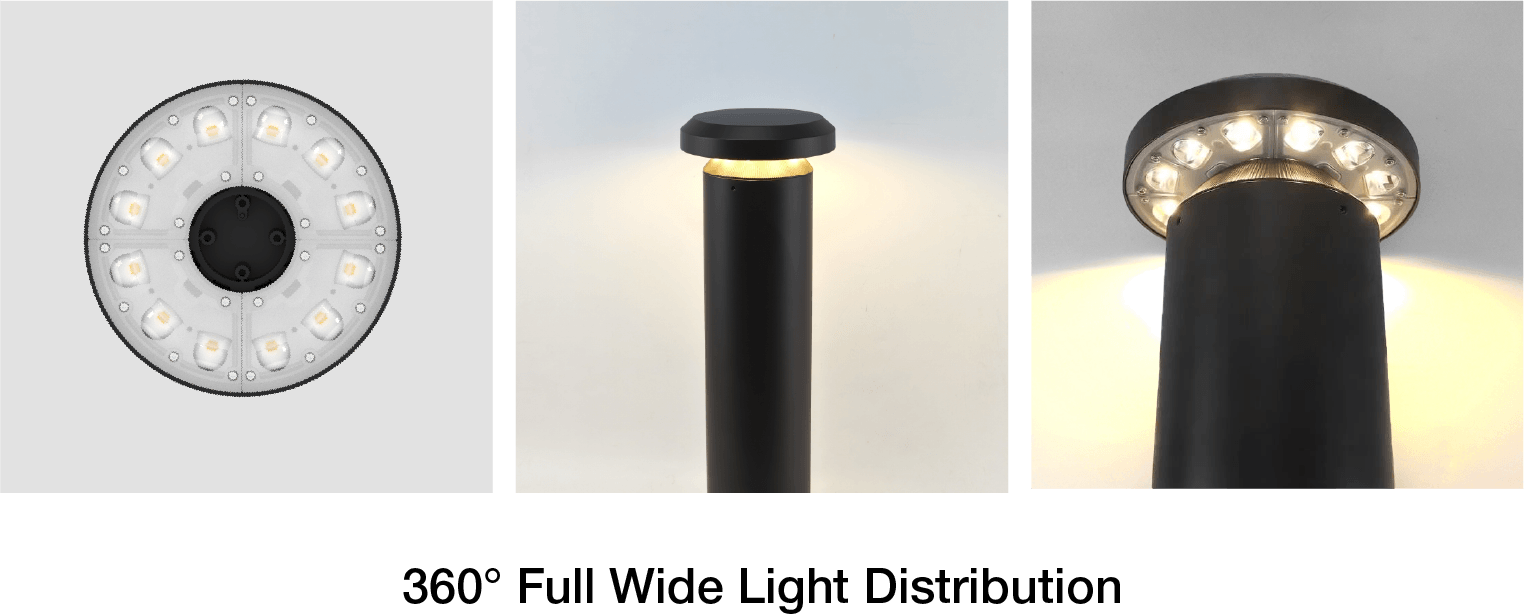

1. Model 2052｜360° Full‑Wide Distribution
   360‑degree omnidirectional light output with evenly spread illumination. Ideal for garden centres, round‑about green belts and open lawn areas. It provides soft, sufficient light for surrounding walkways without dark zones and creates immersive night‑time garden atmosphere.

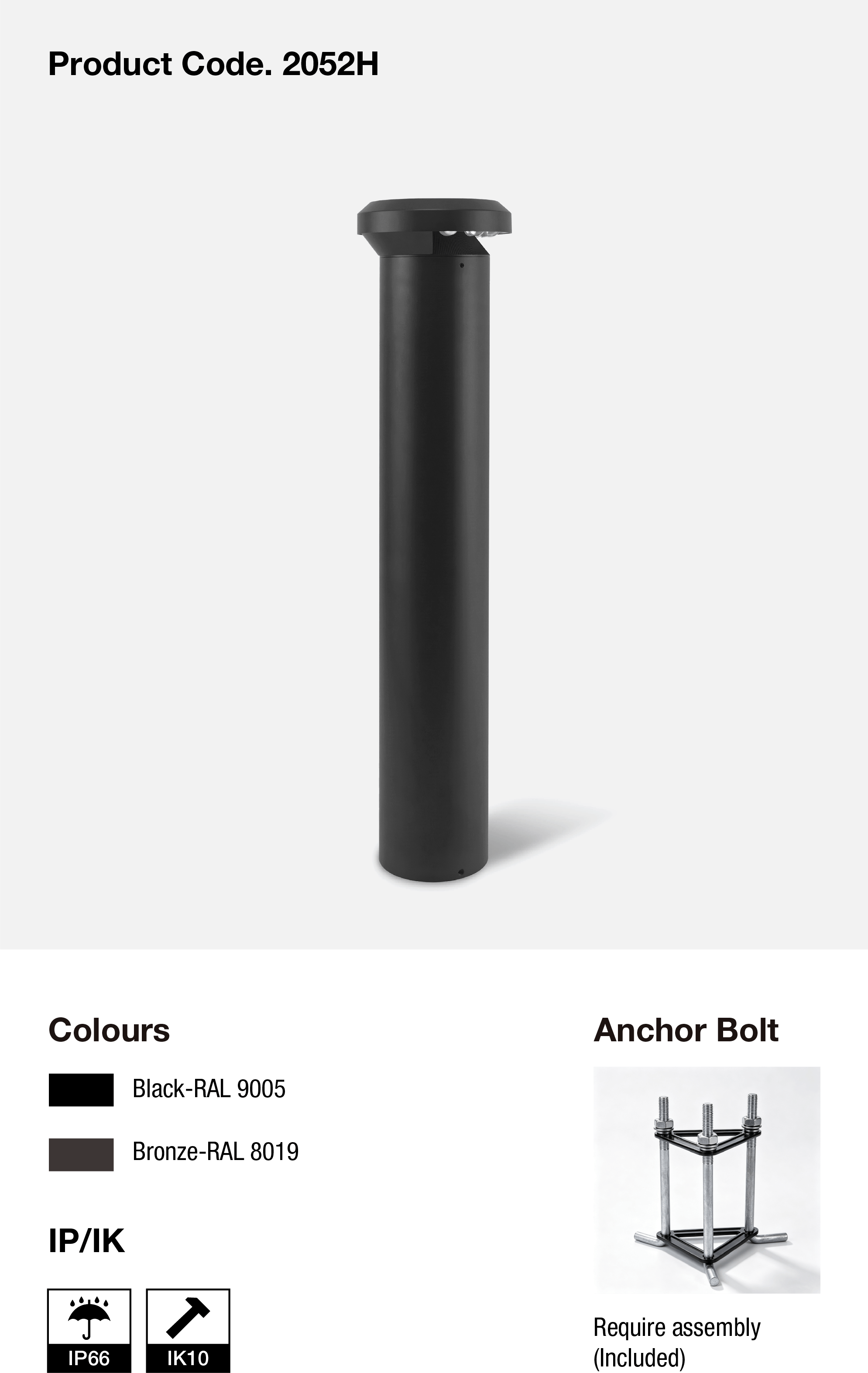

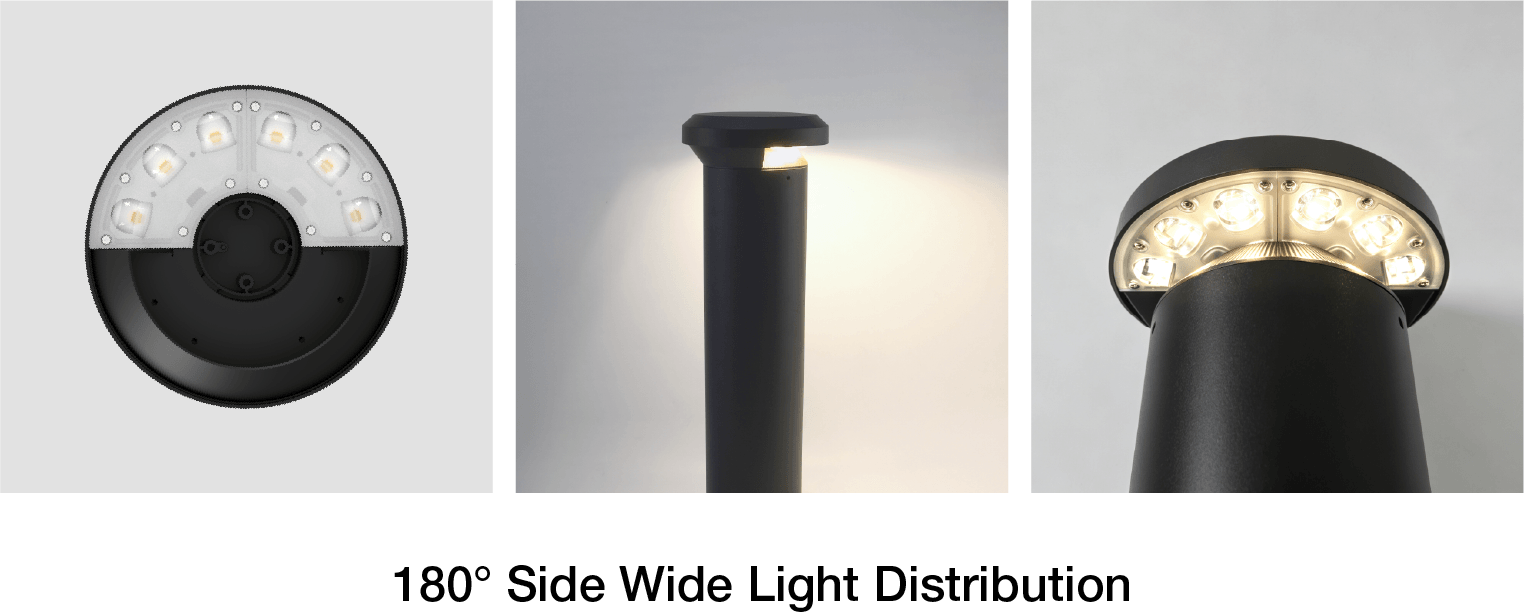

2. Model 2052H｜180° Side‑Wide Distribution
   Directional wide‑angle one‑sided lighting reduces unnecessary light spill. Perfect for linear installation along walkways, walls and driveways. It avoids direct light into residential windows, balancing pathway safety and light pollution control, the preferred solution for walkway linear lighting.
